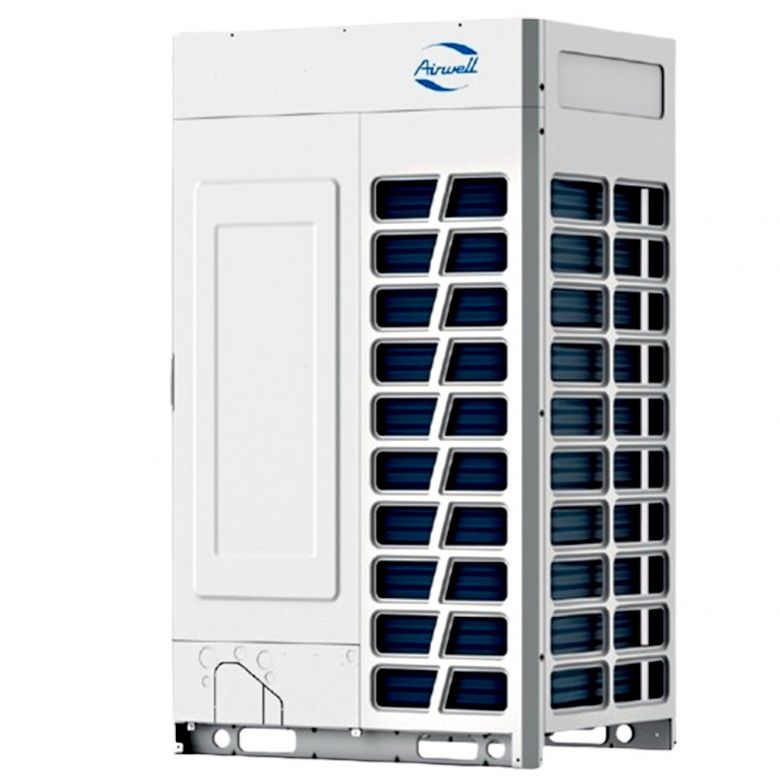

Product advantages of the Airwell inverter VRF outdoor unit (3 pipes & top discharge) VVEA-560R
- Capacity from 22.4 to 246 kW.
- New range, new structure, new selection boxes.
- Just like the version of our VVTA range, the new VVEA 3-tube energy recovery VRF features the new structure of the range, as well as the 4-way heat exchanger for a performance always at the highest level.
- Offering a wide range of capacity with monomodules with a capacity of 61.5 kW and a possible coupling of 4 outdoor units, the new VVEA will meet all hotel, office and tertiary application needs.
- Heat recovery between units, for better energy efficiency.
- Simultaneous operating in heating and cooling modes.
- New even quieter selection box, thanks to their electronic expansion valve.
- New improved accessibility, thanks to the service door.
- Up to 1000 m of refrigeration network and 110 m of height difference.
- Modbus outlet for easy BMS integration.
- Access to all operating parameters, thanks to the HMI (Human Machine Interface).
- New 4-way selection boxes in series with reversible orientation.
- Automatic oil balance, no need for a balance tube.
- Reinforced anti-corrosion treatment.
- Compatible with AirConnect Pro and AirConnect Smart.
Technical Data
